Lifting Magnet | Industrial Electromagnetic Lifter for Scrap and Steel Handling
Key Features of Our Lifting Magnet
•High Magnetic Force: Capable of lifting several tons of steel or scrap in one operation.
•Durable Coil Design: Pure copper or aluminum coil winding ensures strong magnetism and long service life.
•Strong Structural Frame: Fully sealed welded steel shell resists impact, water, and dust.
•Energy Efficient: Optimized coil power consumption for maximum magnetic performance and minimal energy waste.
•Custom Power Options: Available in 110V/220V/230V/380V and DC power supply (e.g., 220V DC via generator or battery).
•Easy Integration: Can be used with cranes, excavators, and material handlers with minimal modification.
•Durable Coil Design: Pure copper or aluminum coil winding ensures strong magnetism and long service life.
•Strong Structural Frame: Fully sealed welded steel shell resists impact, water, and dust.
•Energy Efficient: Optimized coil power consumption for maximum magnetic performance and minimal energy waste.
•Custom Power Options: Available in 110V/220V/230V/380V and DC power supply (e.g., 220V DC via generator or battery).
•Easy Integration: Can be used with cranes, excavators, and material handlers with minimal modification.
Technical Specifications (Sample)
|
Model |
Diameter (mm) |
Lifting Capacity (Steel Plate) |
Voltage (DC) |
Power (KW) |
|
MW5-120 |
1200 |
1.5 Tons |
220V |
4.5 kW |
|
MW5-150 |
1500 |
2.8 Tons |
220V |
6.5 kW |
|
MW5-180 |
1800 |
4.5 Tons |
220V |
8.5 kW |
Applications of Lifting Magnet
•Scrap Handling: Quickly load and unload loose scrap steel in recycling yards.
•Steel Plate Handling: Lift heavy flat steel sheets during fabrication or loading.
•Construction & Shipbuilding: Move steel beams, rebar, and structural elements with ease.
•Foundries and Metal Plants: Transfer hot billets and ingots during production.
•Port Operations: Efficiently handle metal cargo for loading and unloading.
•Steel Plate Handling: Lift heavy flat steel sheets during fabrication or loading.
•Construction & Shipbuilding: Move steel beams, rebar, and structural elements with ease.
•Foundries and Metal Plants: Transfer hot billets and ingots during production.
•Port Operations: Efficiently handle metal cargo for loading and unloading.
Benefits of Choosing Our Lifting Magnets
•Increased Efficiency: Speeds up material handling by 3–5 times compared to mechanical methods.
•Labor Cost Reduction: One operator can handle large volumes of material with minimal effort.
•Improved Safety: Reduces the need for manual handling, lowering the risk of injury.
•Adaptable to Harsh Environments: Works in high-temperature, dusty, and outdoor settings.
•Long Service Life: Reinforced insulation and heat-resistant design for longer durability.
•Labor Cost Reduction: One operator can handle large volumes of material with minimal effort.
•Improved Safety: Reduces the need for manual handling, lowering the risk of injury.
•Adaptable to Harsh Environments: Works in high-temperature, dusty, and outdoor settings.
•Long Service Life: Reinforced insulation and heat-resistant design for longer durability.
Optional Features
•Battery-powered lifting magnets (no external power supply required)
•Remote control and switch cabinet
•Built-in temperature sensor for overheating protection
•Waterproof & high-temperature resistant versions (for foundries)
•Combined lifting magnet + generator sets for excavator integration
•Remote control and switch cabinet
•Built-in temperature sensor for overheating protection
•Waterproof & high-temperature resistant versions (for foundries)
•Combined lifting magnet + generator sets for excavator integration
Proven in Global Markets
Our lifting magnets have been exported to more than 40 countries across Asia, the Middle East, Europe, South America, and Africa. With customizable configurations and fast delivery, we support both OEM and direct end-user clients for scrap yards, steel service centers, and EPC projects.
💬 Contact Us Today Get a tailored magnetic lifting solution to meet your specific handling requirements and boost your material flow efficiency.
💬 Contact Us Today Get a tailored magnetic lifting solution to meet your specific handling requirements and boost your material flow efficiency.

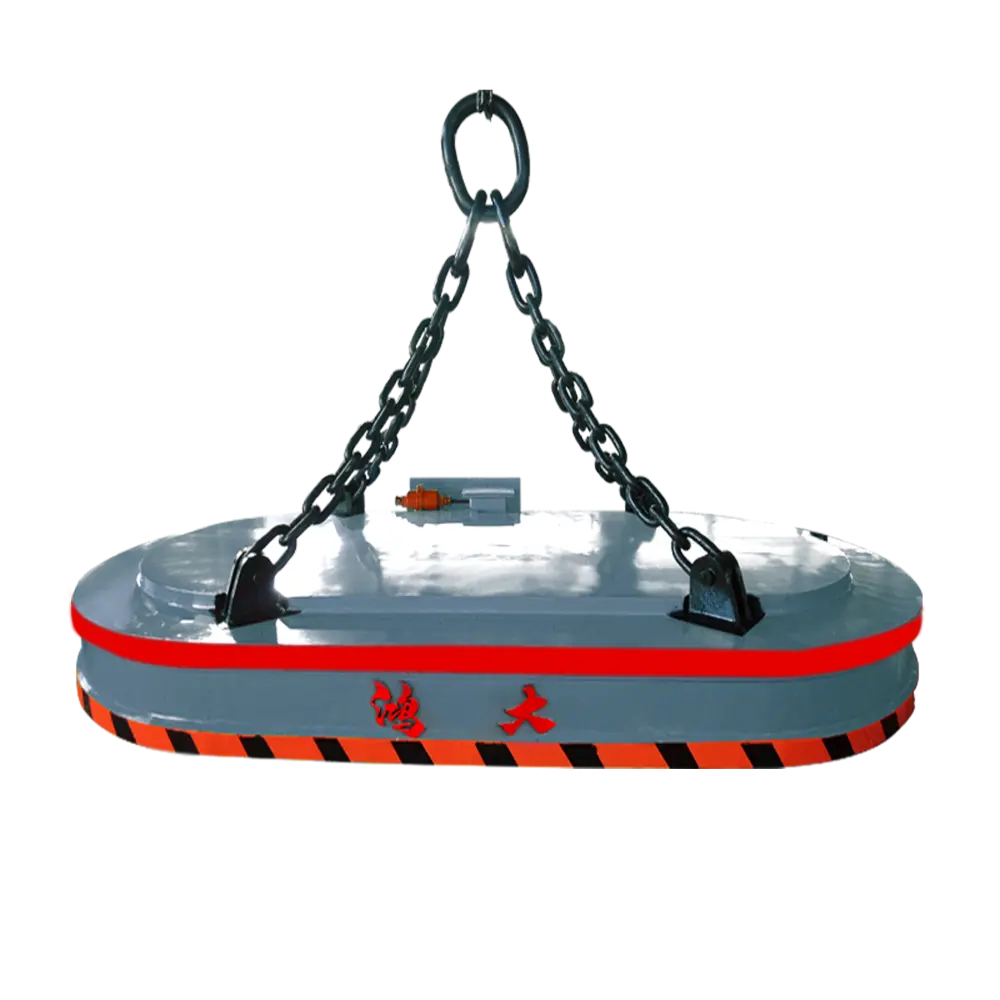

Product Display
